Anmck CAT6 UTP RJ45 Modular Plug Connector 8P8C Crimp End 10/1000Mbps Ethernet Cable Ethernet Connector
Anmck CAT6 UTP 50U RJ45 Modular Plug Connector
Rs. 44.00
CAT6 wire insulation diameter
CAT6 (1.1mm) (23-28AWG)
Note: Not Pass Through

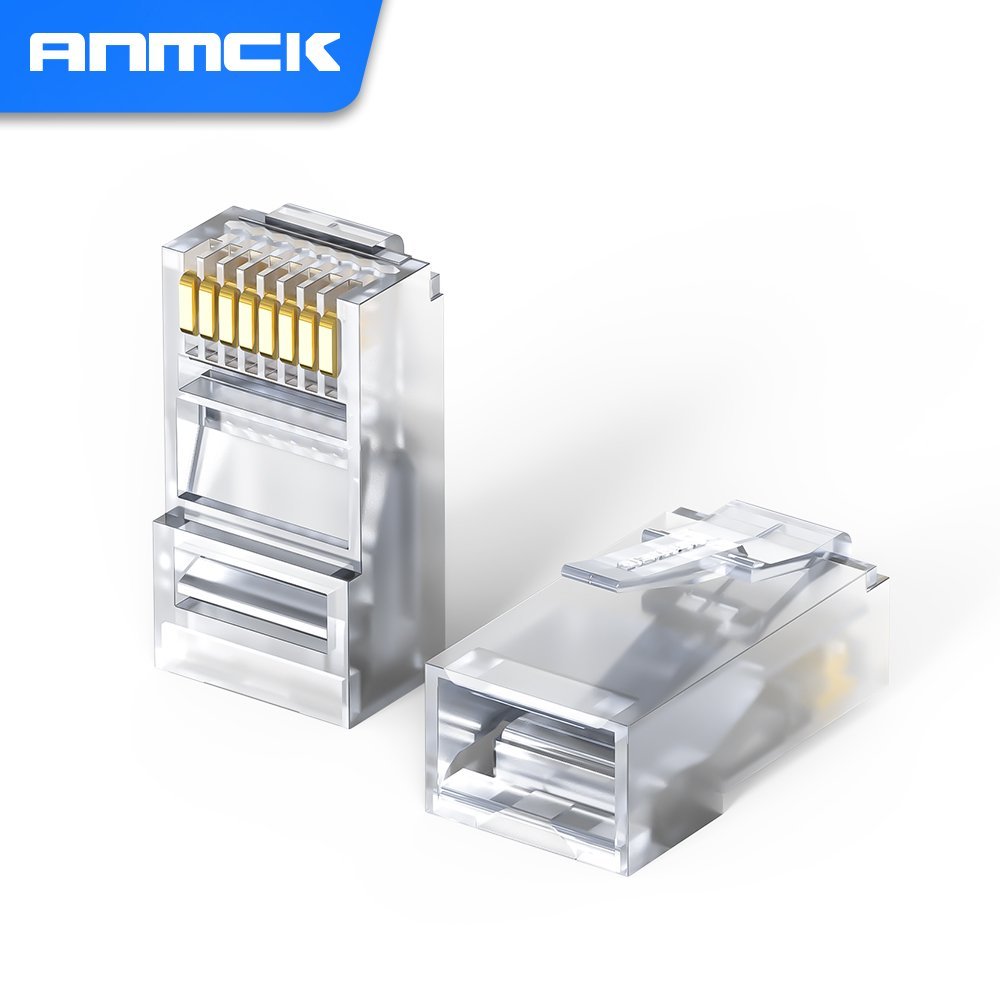

Anmck CAT6 UTP 50U RJ45 Modular Plug Connector
|

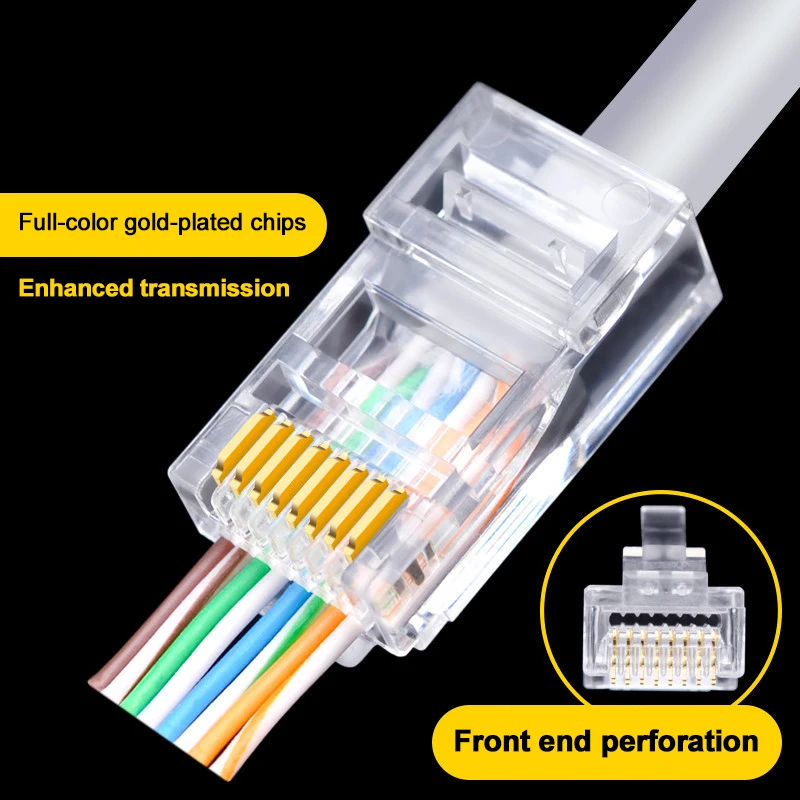

Metal plated connector, great conduction performance, ensures the optimal signal transmission effect
|

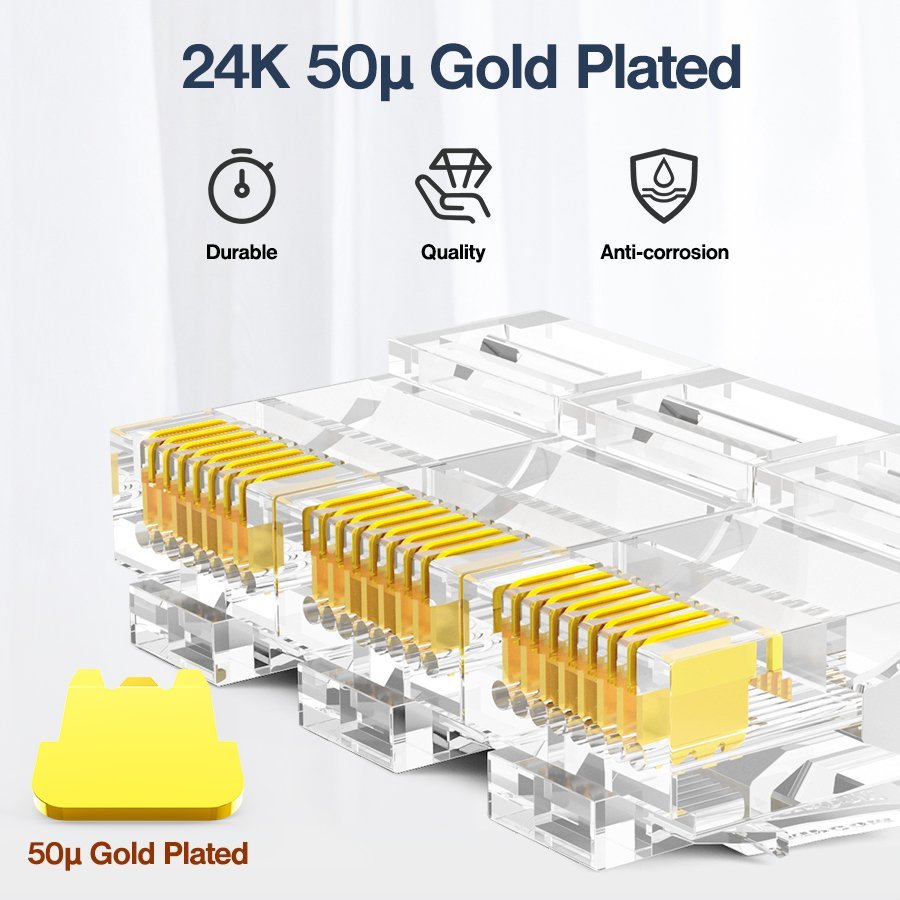

24K 50U GOLD PLATED50u gold plated contacts maintains a superior and reliable data transmission by preventing corrosion last over time
|
|
Steel body with black-oxide finish for excellent performance and durability
|
 |
①50U Thick gold Plated Layer
②Nickel Plated Layer ③Phosphorus Copper Base Layer |

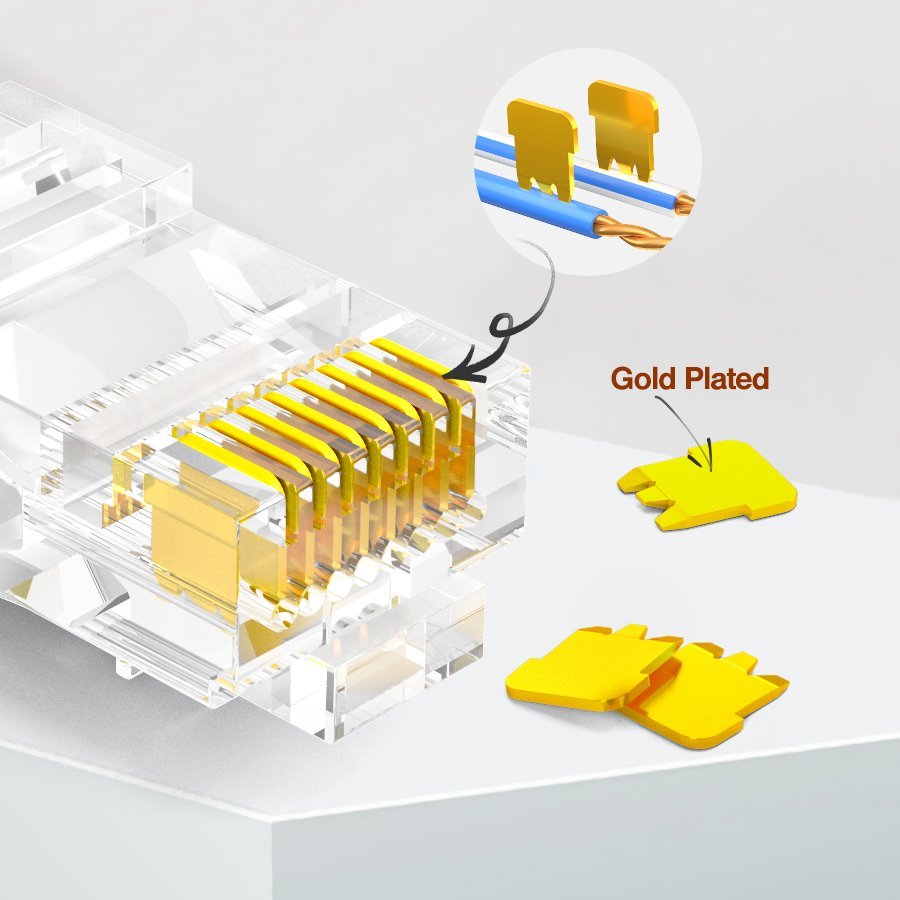

Tripoint Type Contact
What is the difference between stranded (AMPCOM CAT5E) and solid contact design?
 |
 |

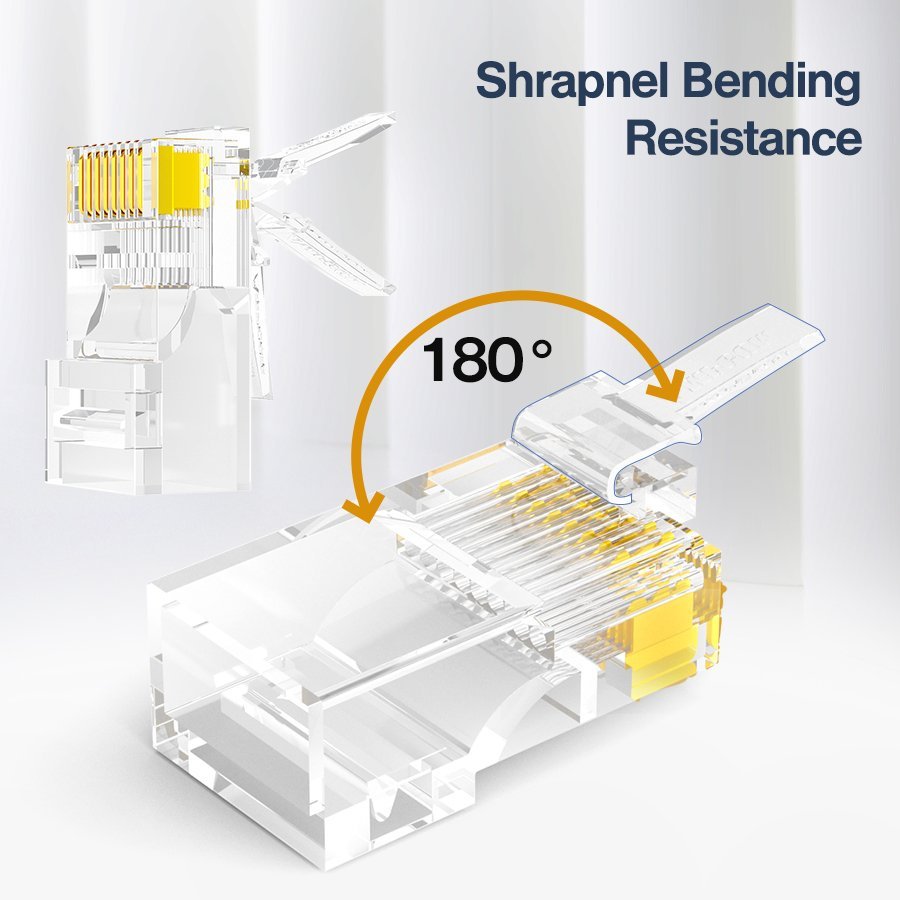

Shrapnel Bending ResistanceHigh-Grade crastal shell; Abrasion resistant and durable, latching tab could support 180 degree bending |

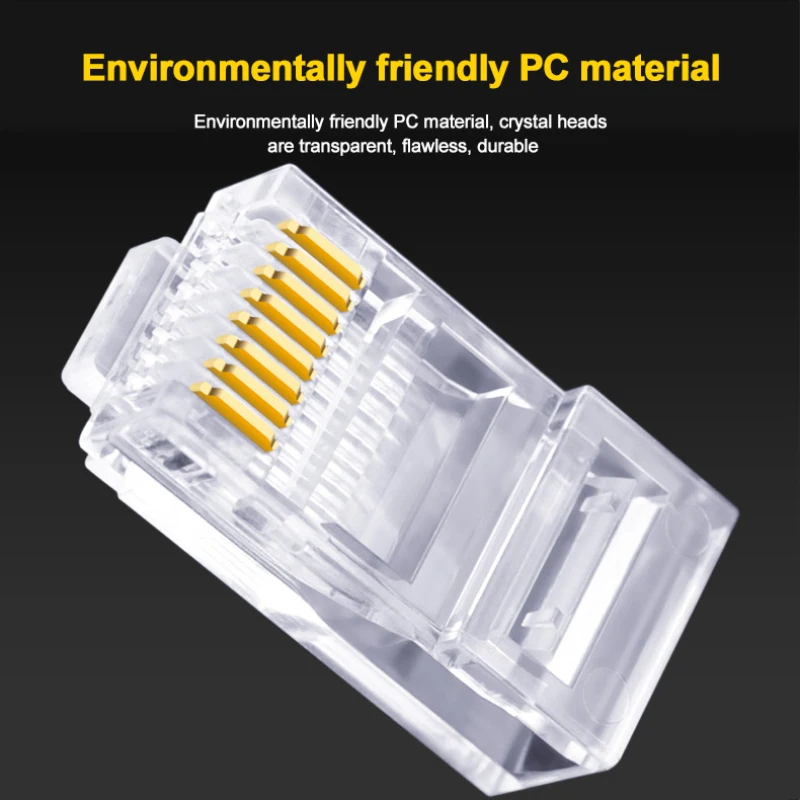

Environmental LG MaterialClear impact-resistant polycarbonate housing is durable for crimping |
 |
 |
Supports 24 to 28 AWG round or flat wire
One-piece modular plug designed to terminate stranded or solid Ethernet cables easily and efficiently
Use Without Worry
50u gold plated contacts maintains a superior and reliable data transmission by preventing corrosion last over time. Clear impact-resistant polycarbonate housing is durable for crimping. The connector locking clip can be bent many times without breaking.
How to Crimping An RJ45 Connector
|
|
|
|
|
1. Cut off the cable jacket with wire striper, trim the wires to make tips neat and reserve appropriate length. |
2. Arrange the wires according to the T568A/B connection method and put the wires into the connector to the deepest position. |
3.Put the connector into the crimper dies, align the contacts position and press down. |
 |
||
|
1.White Green
2.Green
3.White Orange
4.Blue
5.White Blue
6.Orange
7.White Brown
8.Brown
|
1.White Orange
2.Orange
3.White Green
4.Blue
5.White Blue
6.Green
7.White Brown
8.Brown
|
|
Parameter
