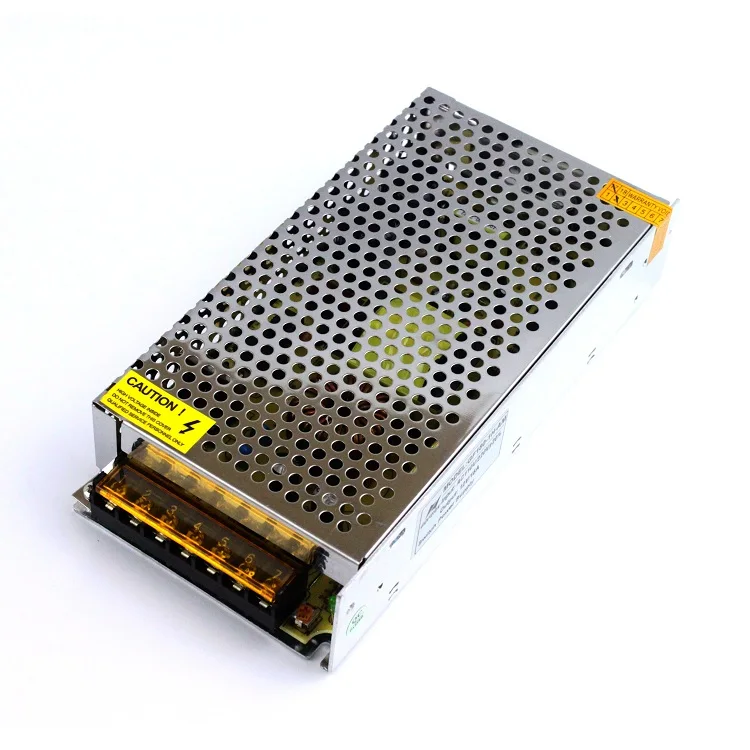

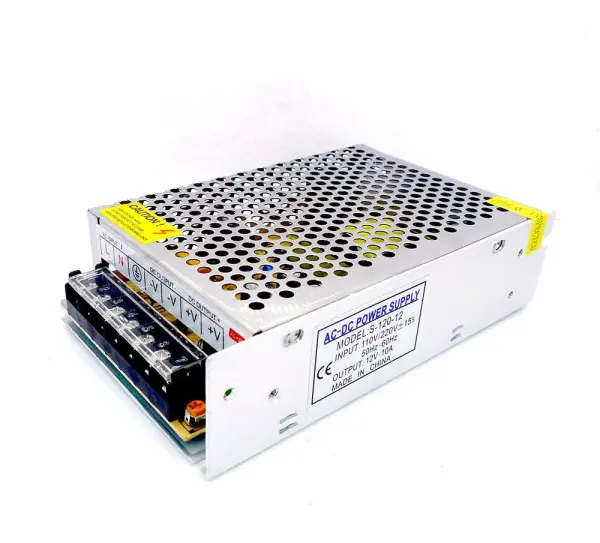

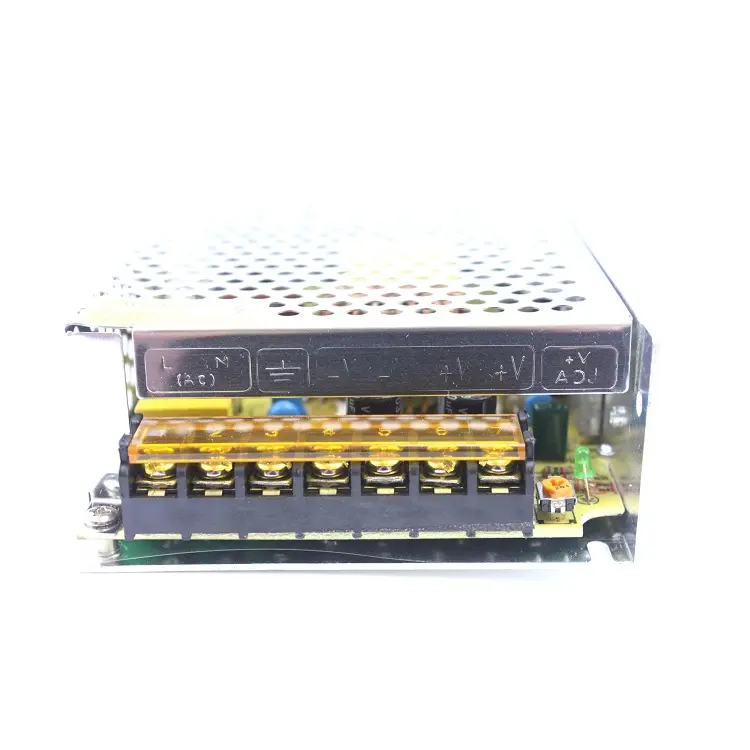

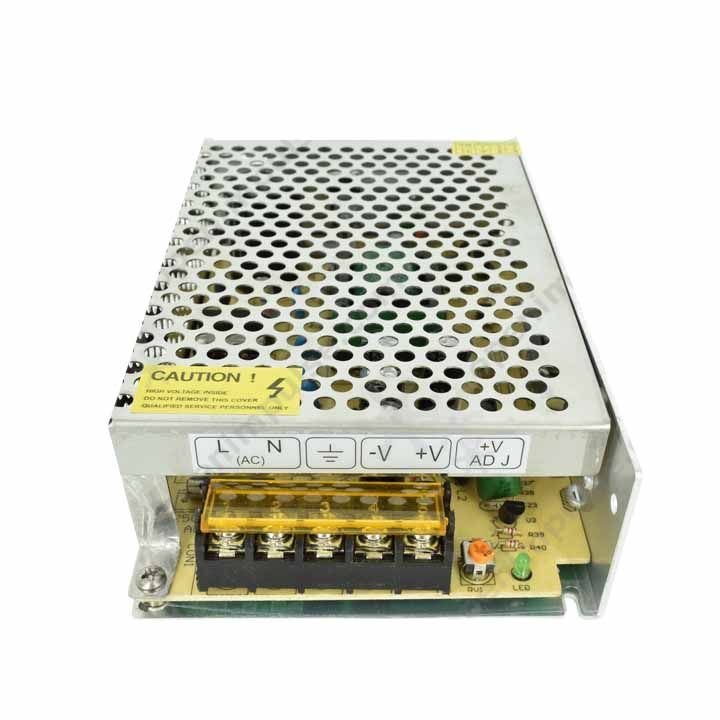

CENTRE POWER SUPPLY | 10A | 20A | 30A (1 WEEK CHECKING WARRANTY)
Features:
* Low power consumption, high reliability
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection
* 100% full loading burn-in test
* 2 years warranty
* AC110/220V input
| MODEL | GF120-1J-DM | GF120-1H-DM | GF120-1K-DM | GF120-1B-DM | GF120-1L-DM | GF120-1C-DM | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| OUTPUT POWER | 120W | 120W | 120W | 120W | 120W | 120W | |
| CURRENT RANGE | 24A | 10A | 8A | 5A | 3.3A | 2.5A | |
| RIPPLE & NOISE(max.) | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | ±10% | ||||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±2.0% | ||||||
| VOLTAGE TOLERANCE | ±2.0% | ||||||
| SETUP,RISE TIME | 800ms, 50ms at full load | ||||||
| HOLD UP TIME | 60ms | ||||||
| INPUT | VOLTAGE RANGE | 110/220VAC by switcher | |||||
| AC CURRENT(Typ.) | 0.35A/ 116VAC 0.18A/ 240VAC | ||||||
| FREQUENCY RANGE | 47-63Hz | ||||||
| EFFICIENCY(Typ.) | 72% | 78% | 78% | 80% | 82% | 82% | |
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | ||||||
| LEAKAGE CURRENT | <3.0mA/240VAC | ||||||
| PROTECTION | OVER LOAD | 115%~135% of rated output voltage | |||||
| SHORT CIRCUIT | voltage off and reset input for recovers | ||||||
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | ||||||
| TEMP. COEFFICIENT | ±0.05%/℃ | ||||||
| COOLING METHOD | BY FREE AIR CONVECTION | ||||||
| SAFTY & EMC | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | ||||||
| SAFTY STANDARDS | Refer to CE EN60950-1 | ||||||
| EMC STANDARDS | Refer to EN55022,EN55024,EN61000 | ||||||
| OTHERS | DIMENSION | L198*W98*H42MM | |||||
| WEIGHT | 30PCS/Carton/16.5KG | ||||||
| SHELL MATERIAL | Aluminium | ||||||
